AIM-D100-TH DC Insulation Monitoring Device

Functions:
* Resistance monitoring. The product can monitor the insulation resistance of the positive and negative poles of the DC system to the ground. When the insulation resistance is lower than the set warning and alarm values, it can send out warning and alarm signals.
* Voltage monitoring. The product can monitor the voltage between the positive and negative poles of the DC system and the voltage between the positive and negative poles with respect to ground.
* Over- voltage and under-voltage alarm function. The product can monitor the DC system voltage fluctuation, when there is over-voltage or under-voltage, it can issue an alarm signal in time.
* Early warning and alarm function. The product has two groups of independently adjustable set values, you can set the warning value and alarm value.
* LED indication function. The product panel has operation, communication and fault, over-voltage, under-voltage LED indicators, which can display the product status.
* LCD display function. The product adopts 128*32 dot matrix liquid crystal display, which can display parameter information.
* Relay output function. The product has 3-channel relay outputs, which can be selected as normally open or normally closed mode.
* Event record function. The product can record the time of the alarm and the type of fault, which is convenient for the staff to troubleshoot.
* Communication network function. The product has 1 RS485 interface and adopts Modbus-RTU protocol, which can be used for data interaction.

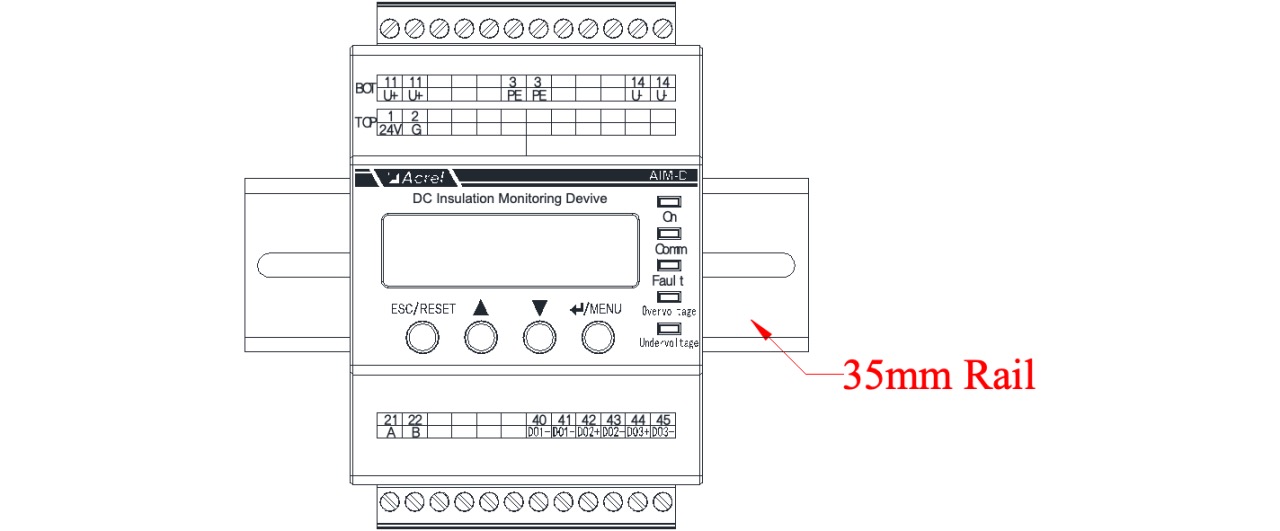

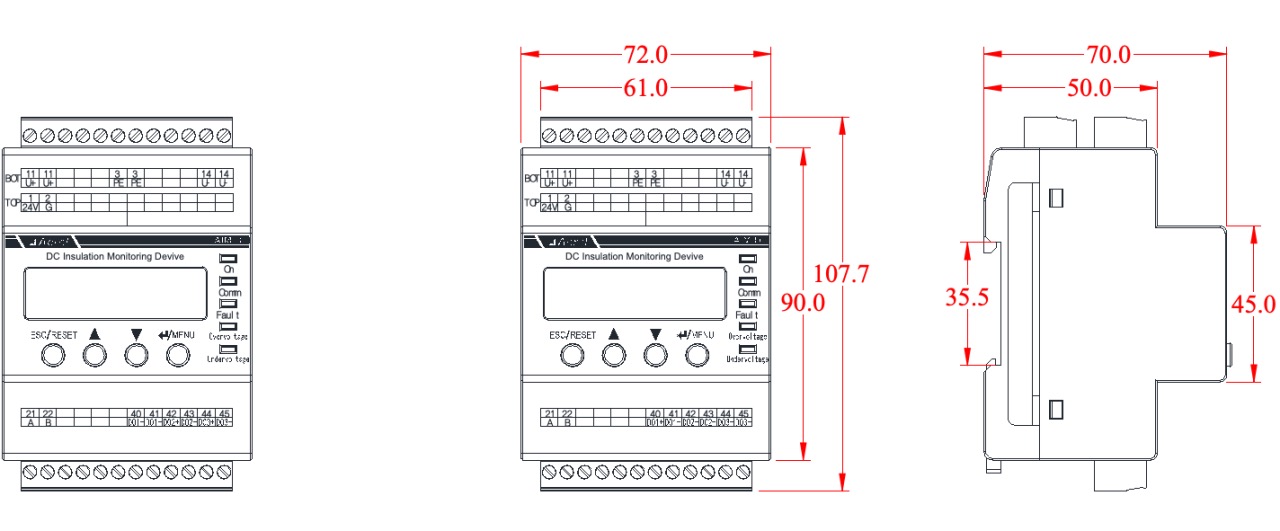

* Rail mounting. The product adopts the standard 35mm rail mounting.

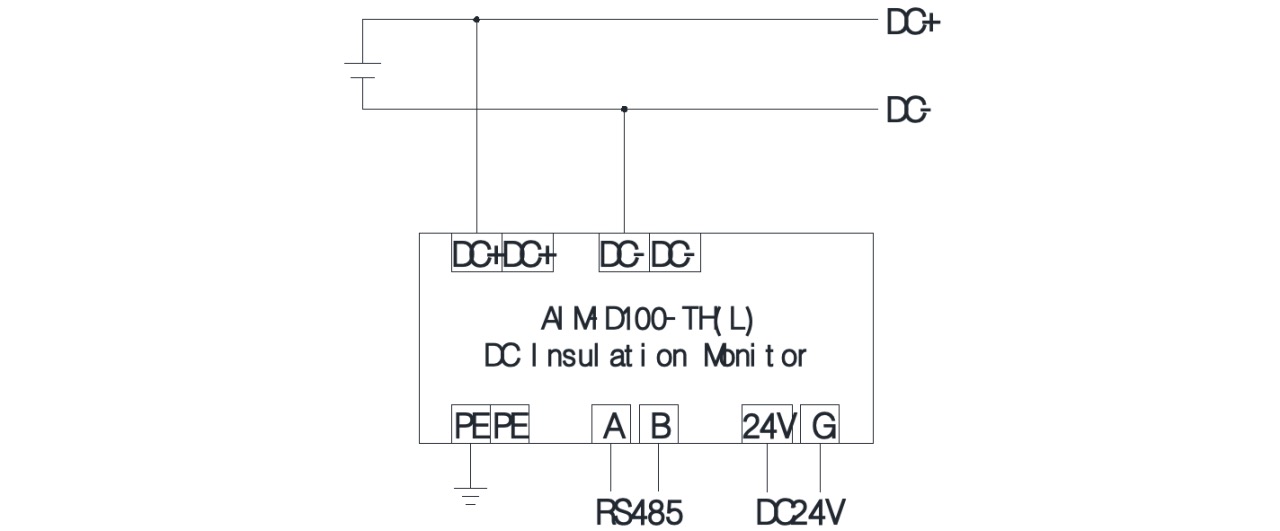

* Plug-in terminals. The product adopts plug-in terminal wiring, which is convenient for wiring and installation.

Technical Parameter		Technical Specifications
Auxiliary power		DC 12~36V
Maximum power consumption		≤6W
Voltage monitor	Voltage range	AIM-D100-TH: DC 100~1000V； AIM-D100-TL: DC 10~100V
	Accuracy	0.5
	Overvoltage threshold	≥ Rated Voltage * 120%
	Undervoltage threshold	≤ Rated Voltage * 80%
Insulation monitoring	Insulation resistance range	1kΩ~10MΩ
	Warning and alarm range	10kΩ~10MΩ
	Accuracy	1~10kΩ: ±1k; 10k~500k: ≤3%
	System leakage capacitance	≤5μF
	Monitoring method	Cycle trigger: 5~500s delay can be set; Communication trigger: read on demand
	Insulation monitoring speed	500ms/cycle; 1000ms/cycle
	Internal DC impedance	＜1MΩ
Alarm method		LCD, LED indicator, relay output
Alarm output		3 relay outputs, N/O or N/C can be set
Contact capacity		AC 250V 5A； DC 30V 5A
Fault Record		20 fault records
Communication		RS485 interface, Modbus-RTU protocol
Installation		DIN-rail installation
Protection level		IP30
Environment	Operating temperature	-20~+60℃
	Storage temperature	-25~+75℃
	Relative humidity	<95%, without condensation
	Altitude	< 2000m
