Smart Busway Monitoring Solution

Application

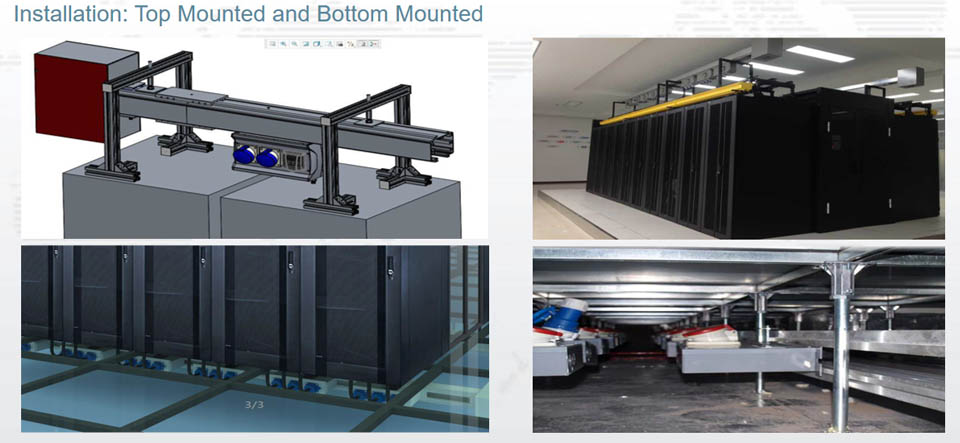

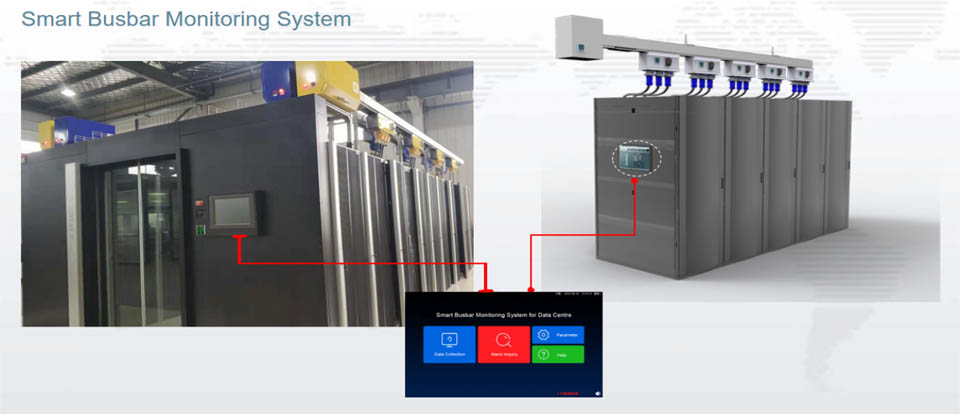

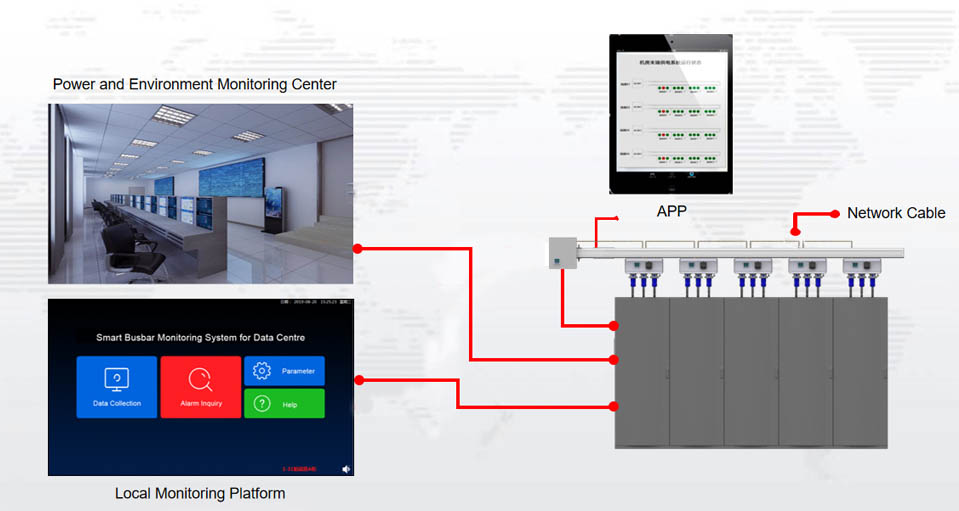

It is necessary to real-time monitor energy consumption and power quality of end load in smart track busway. Data can be uploaded to monitoring system by local touch screen through RS485 and it can realize real-time monitoring of the whole power distribution system.At the same time,it can monitor real-time temperature at the busway connector and plug-in box interface to ensure safe and reliable operation of the busway.

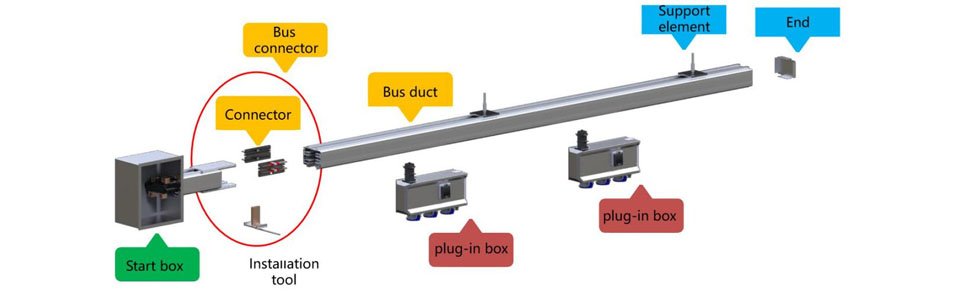

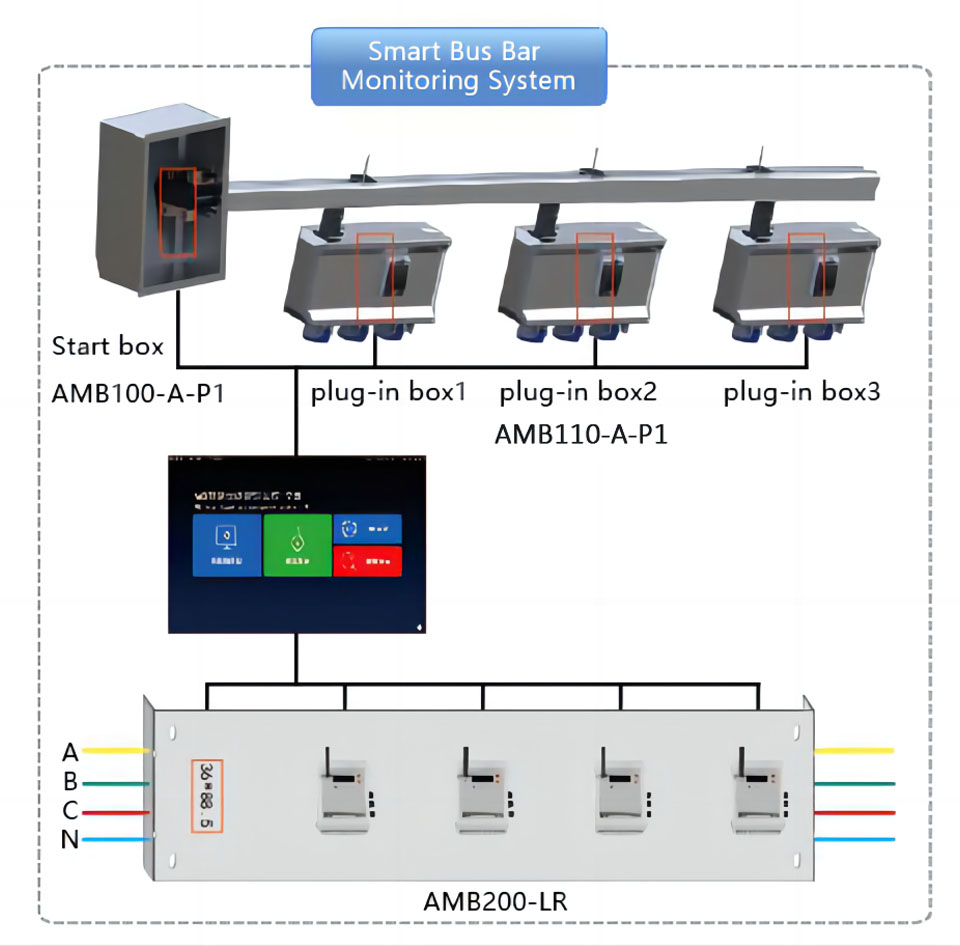

Structure

Busway temperature monitoring system(Infared)

Main Function

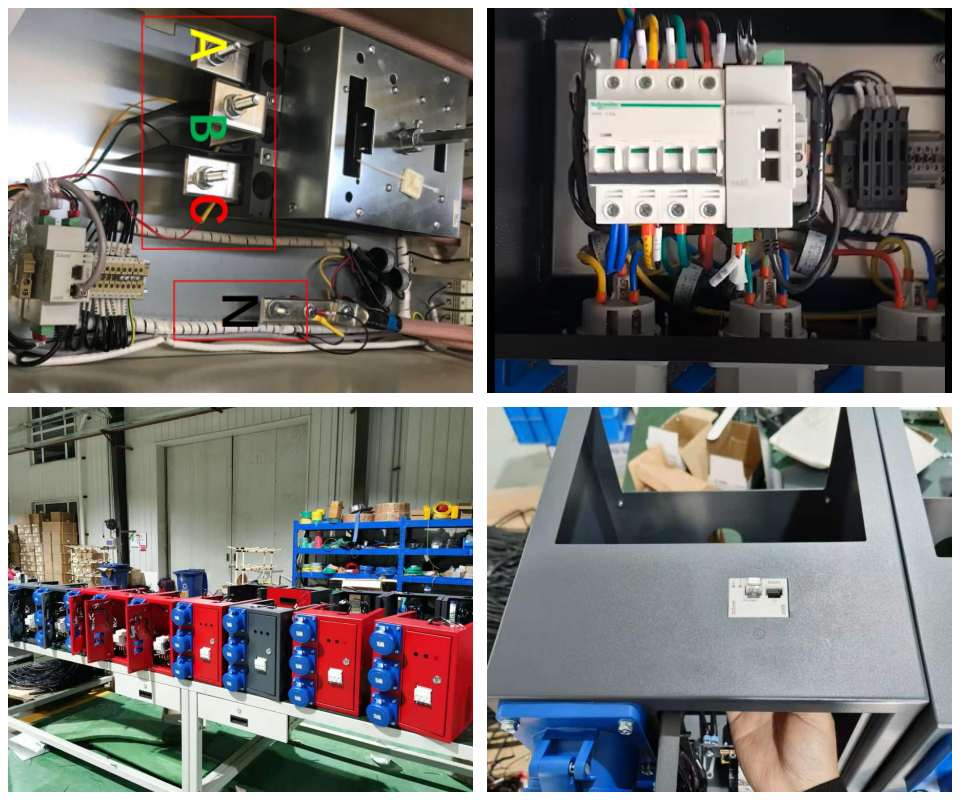

1.AMB100 or AMB110 is usually installed in the busbar start box and plug-in box

2.Measurement: AC or DC busbar voltage, current, harmonics and other parameters.

3.Realize temperature monitoring of the busbar plug interface

4.AMB300 is installed on the cover plate of dense AC bus duct, and can collect the temperature and humidity in the bus duct through infrared non-contact temperature measurement.

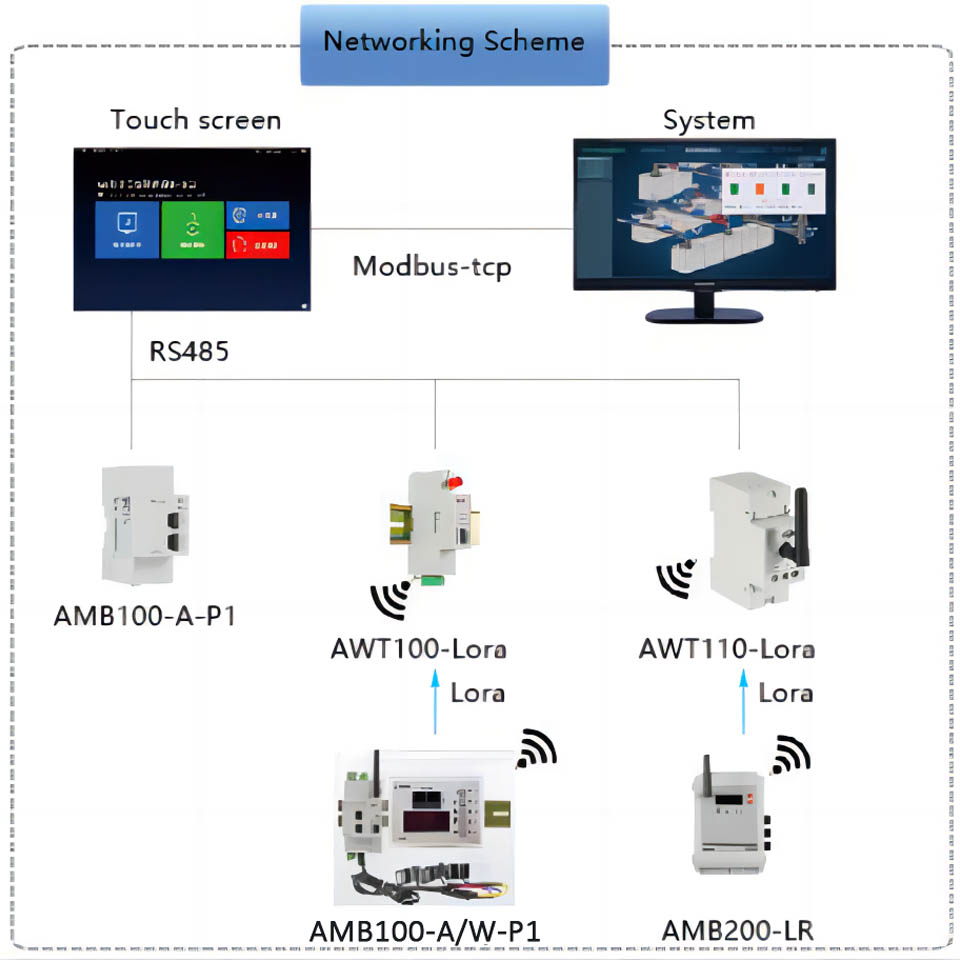

5.Communication: RS485

Product Selection

Item	Pic	Model	Main Function

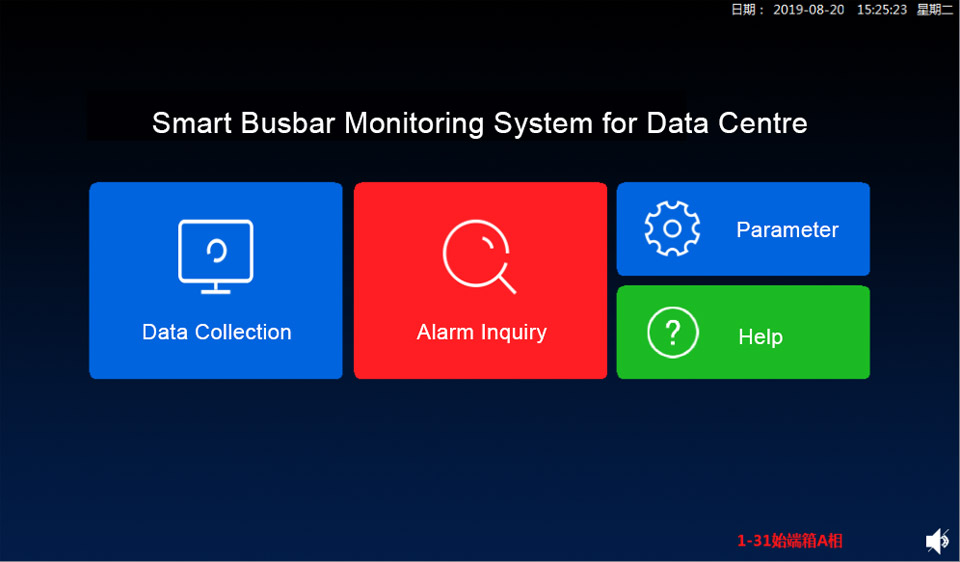

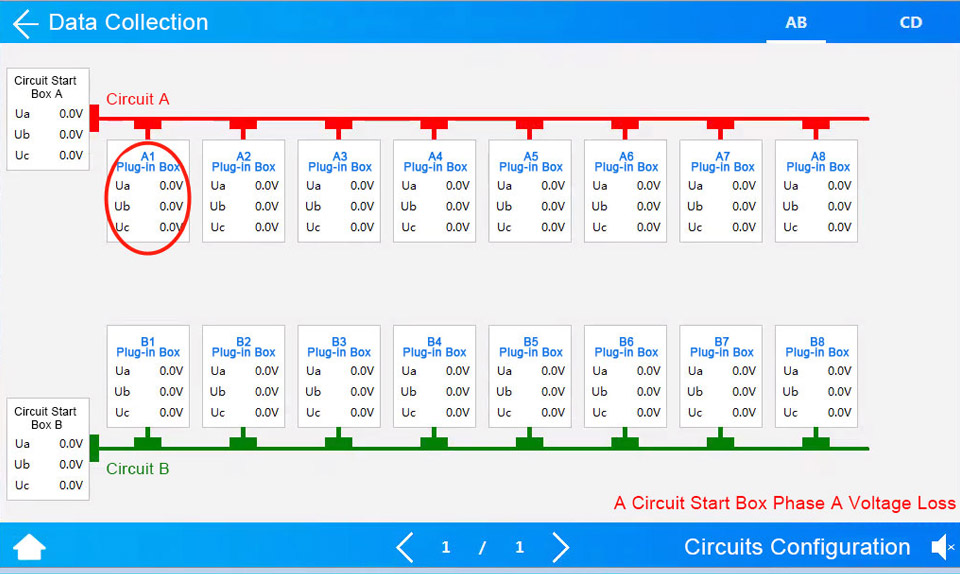

HMI		ATP010kt	1.10 inch touch screen 2. Real-time monitoring and display voltage, current, power, energy, power quality, switch status, wave curve, etc. of the busbar 3. monitoring device alarm, communication and other parameters can be configured on the screen. 4. 2 channel RS485 and 1 channel Ethernet, and data can uploaded by RS485 or RJ45
AC start box monitoring module		AMB100-A-P1	1. Installation: DIN Rail 35mm 2. Measurement: 3 phase electrical parameters, 2DI2DO, 8 temp., 1 leakage current, 1 temp. and humidity 3. Communication: 1 in 1 out type RJ45 interface(Modbus protocol)
AC plug-in box monitoring module		AMB110-A-P1	1. Installation: DIN Rail 35mm 2. Measurement: 3 phase electrical parameters, 2DI2DO, 4 temp., 1 leakage current, 1 temp. and humidity 3. Communication: 1 in 1 out type RJ45 interface(Modbus protocol)
DC start box monitoring module		AMB100-D-P1	1. Installation: DIN Rail 35mm 2. Measurement: 1 DC circuit electrical parameters, 4DI2DO, 8 temp., 1 leakage current,1 temp. and humidity 3. ±12V output to power hall current sensor 4. Communication: 1 in 1 out type RJ45 interface(Modbus protocol)
DC plug-in box monitoring module		AMB110-D-P1	1. Installation: DIN Rail 35mm 2. Measurement: 3 DC circuits electrical parameters, 4DI2DO, 4 temp., 1 leakage current, 1 temp. and humidity 3. ±12V output to power hall current sensor 4. Communication: 1 in 1 out type RJ45 interface(Modbus protocol)
DC outgoing line hall effect current sensor		AHKC-BS	Current ratio: 100A/5V Common Specification: 100A/5V
AC outgoing line current transformer		AKH-0.66W	Current ratio: 100A/20mA Common Specification: 100A/20mA
AC bus infrared temperature measurement		AMB300-Z	Fixedly installed on the cover plate at the connection of the busbar, non-contact temperature measurement, measuring and displaying a single large-range array temperature, RS485 communication interface.
AC bus infrared temperature measurement		AMB300-D1	Fixedly installed on the cover plate at the connection of the busbar, non-contact temperature measurement, measuring and displaying a single small-scale single-point temperature, RS485 communication interface.
AC bus infrared temperature measurement		AMB300-D4	Fixedly installed on the cover plate at the connection of the busbar, non-contact temperature measurement, measuring and displaying 4 small-scale single-point temperatures, RS485 communication interface.
