AMC16-DETT

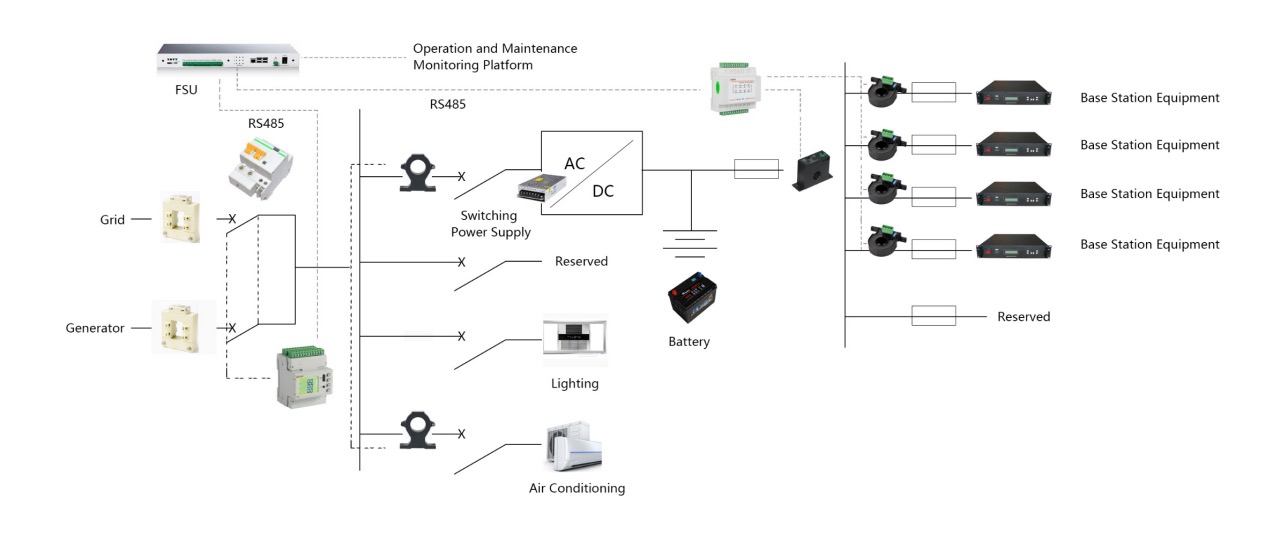

Base station dedicated DC energy meter AMC16(L)-DETT is specially designed for base stations where have sharing requirements, and switch power supply is without the function of sub-user metering. The meter could measure 6 circuits DC energy, and supply working current to the matched hall sensors. Meanwhile, it can realize zero drift calibration by upper computer software. have the functions of telemetering,teleindication,teleadjusting, metering at real time, energy quality abnormal alarm, data storage and processing, data interaction. This meter can measure DC power consumption of three operators, providing detail datas for base station.

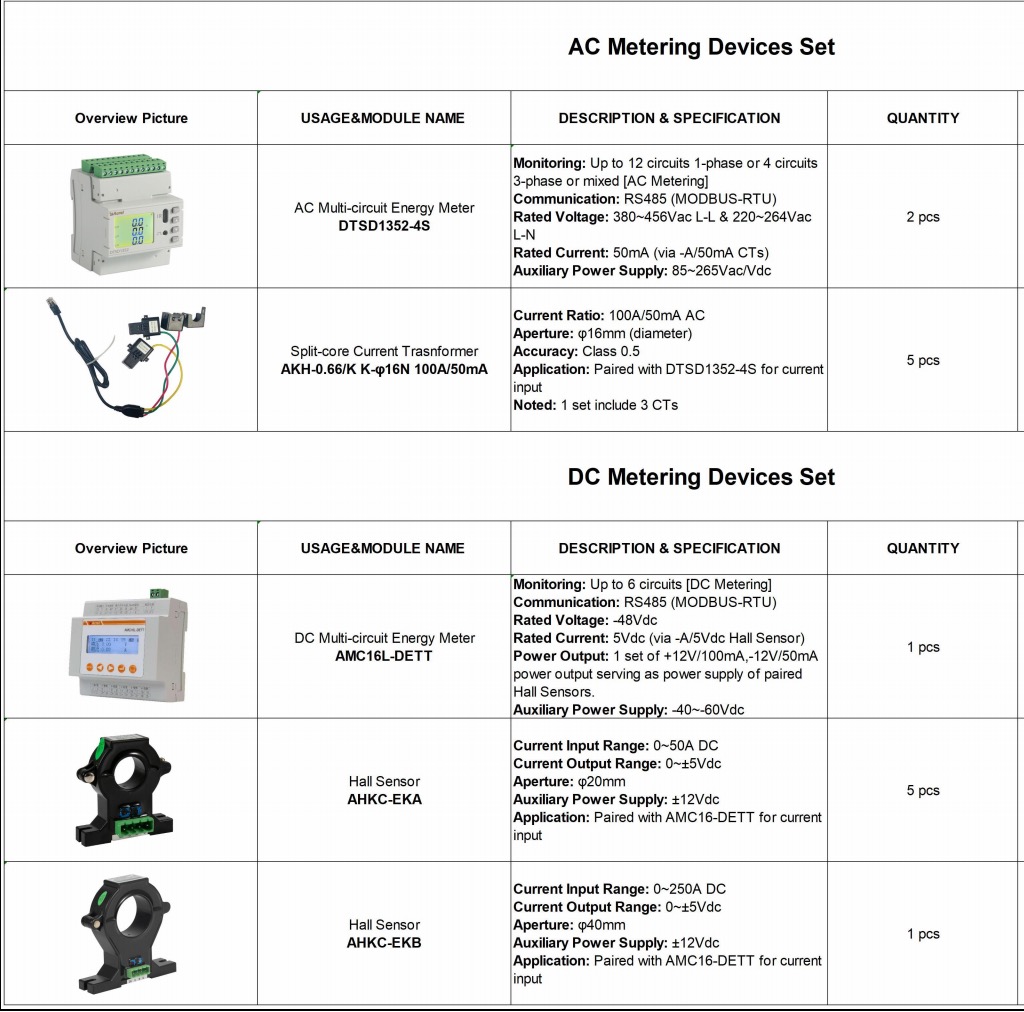

Project: American Tower Project and Kenya Telecom Tower Power Monitoring Project.

Technical parameter		Index
input	DC rated voltage	1 channel: -48VDC

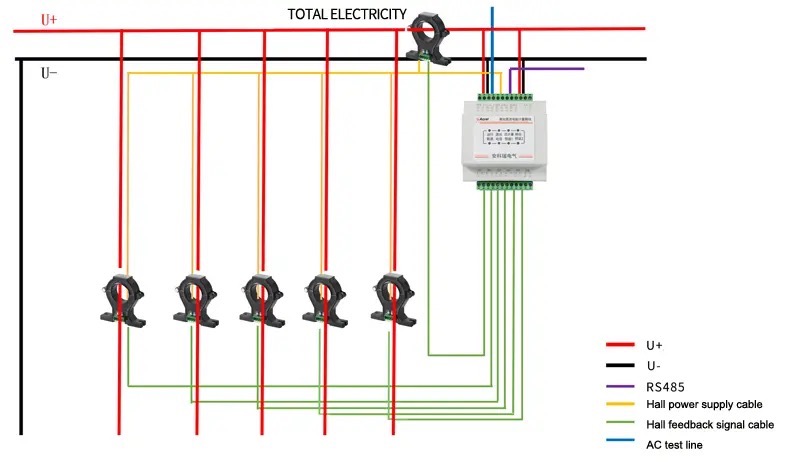

	DC current	6 channels hall sensors: total 200A/5V, China Telecom, China Mobile, China Unicom and the 1st channel reserve 50A/5V, 2nd
		channel reserve 100A/5V.
	Commercial power monitoring	1 channel: 0-5VDC
	Overload capacity	Voltage:1.2times continued,2 times continued 1s;
		Current: 1.2 times continued,10 times continued 1s.
Accuracy (superposition hall sensors)		1%In≤I≤10%In error±2.5%; I>10%In error±2%
Measurement resolution		Voltage output accuracy 0.01V; current output accuracy 0.01A;
		power output accuracy 0.01kw; energy output accuracy 0.01kwh
functions	Basic function	Monitor device system time, total voltage, output total current, power, energy, each channel voltage, current, power, energy; LED
		indicator display;485 communication
	Metering function	Start current: under rated voltage, when the load current value of the meter doesn’t exceed 1% of the max. current, the meter starts.
		Shunt running current: when there is no current in the current circuit of the meter, and 85%-125%of the rated voltage is applied on the voltage circuit, the calculator hall not have more than one digital change
	Alarm function	DC voltage output low alarm, DC voltage output high alarm, one power down alarm, module voltage loss alarm, metering branch error alarm, internal program error alarm, clock error alarm, memory failure alarm, AC input power failure alarm
	Timing function	support broadcast timing, could remote timing to the meter through RS485 communication.
	Communication	Single channel RS485, baudrate 9600bps, can be set to 1200BPS, 2400bps, 4800bps.Communication protocol: standard or custmized
	Hall sensor power	Power supply output:+12V/100Ma, -12V/50mA
	supply
	Clock accuracy	≤0.5S/d(23℃), ≤1S/d(-20℃-60℃),
Auxiliary power supply	Voltage range	-40V~-60VDC
	Power consumption	Whole device≤2W( no hall power supply output)
Storage		It has the storage function of historical power data and historical
		alarm information and the memory is 2MB
Insulation resistance		≥40MΩ
environment	Temperature	Working: -20℃~+60℃; storage:-40℃~+70℃
	Humidity	≤98% no condensation, no corrosive gas place
	Altitude	≤4000m
Protection level		IP20
Material flame retardent		Terminal glow wire temperature 960℃±10℃, shell glow wire temperature 6500℃±15℃
installation		Standard 35mm din rail
Lightning protection	Voltage input	Peak value 5kA
	(deferential mode)
	Auxiliary power supply	Peak value 5kA
	(deferential mode)
