BM200 isolated safety barrier

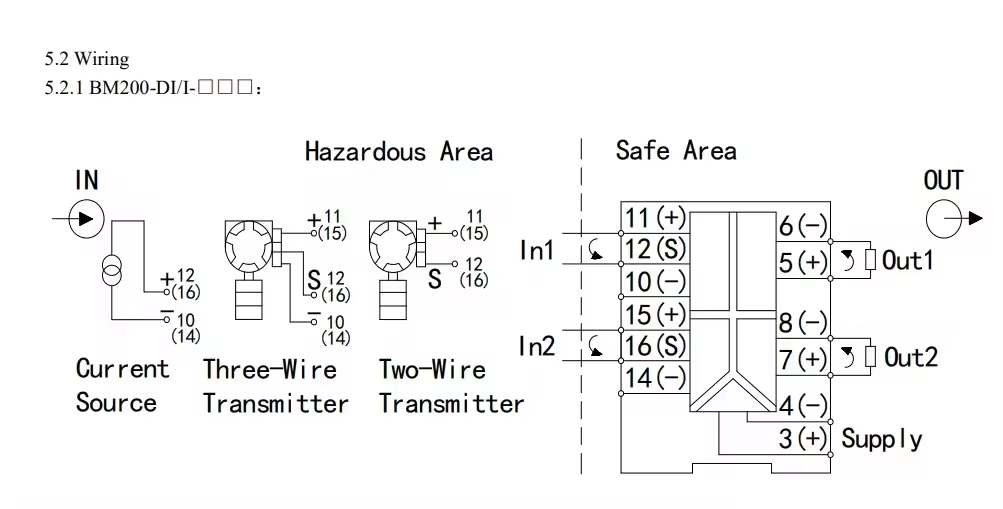

BM200 isolated safety barrier can transmit signals between the safe area and the dangerous area, and limit the energy transfer from the safe area to the dangerous area caused by the fault. The voltage, current, temperature, resistance signals generated by the equipment (transmitter) on the dangerous side are isolated and converted into corresponding linear voltage and current signals outputting to the safe area. The product requires independent power supply, and the input/output/power supply is isolated. It can be used in current source, two-wire, three-wire transmitter equipment.

Type	BM200-DI/I-B11、BM200-DI/I-C12、BM200-DI/I-C22
Channel type	1 in 1 out, 1 in 2 out, 2 in 2 out
Input type	Current
Output signal	0～20mA/4～20mA (Distribution voltage: 14.0V/20mA)
Output Signal	0～20mA /4～20mA (safety side output); Load resistance: ≤550Ω
Transmission accuracy	0.2%
Temperature drift	50ppm
Response time	5ms to reach 90% of final value
Supply voltage	20～35V DC
Consumption	24V power supply, 20mA output: ≤70mA (one in, one out) ≤110mA (one in, two out) ≤160mA (two in and two out)
Working temperature	-20℃～+60℃
Storage temperature	-40℃～+80℃
Relative humidity	≤95%RH, no condensation, no corrosive gas place
Altitude	≤2500m
Protection level	IP20

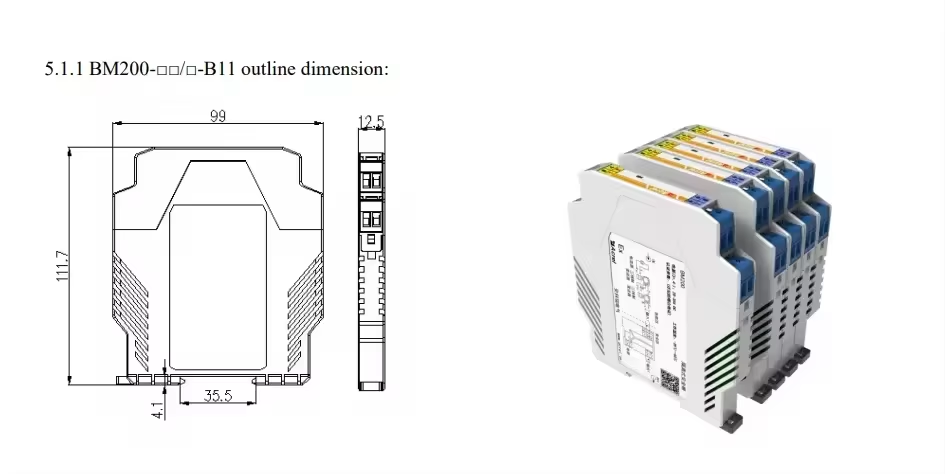

Weight	About 150g (22.5mm shell)
Installation	Din-rail mounted
Dielectric strength	Intrinsically safe end and non-intrinsically safe end ≥ 2500V AC; power supply and non-intrinsically safe end ≥ 500V AC
