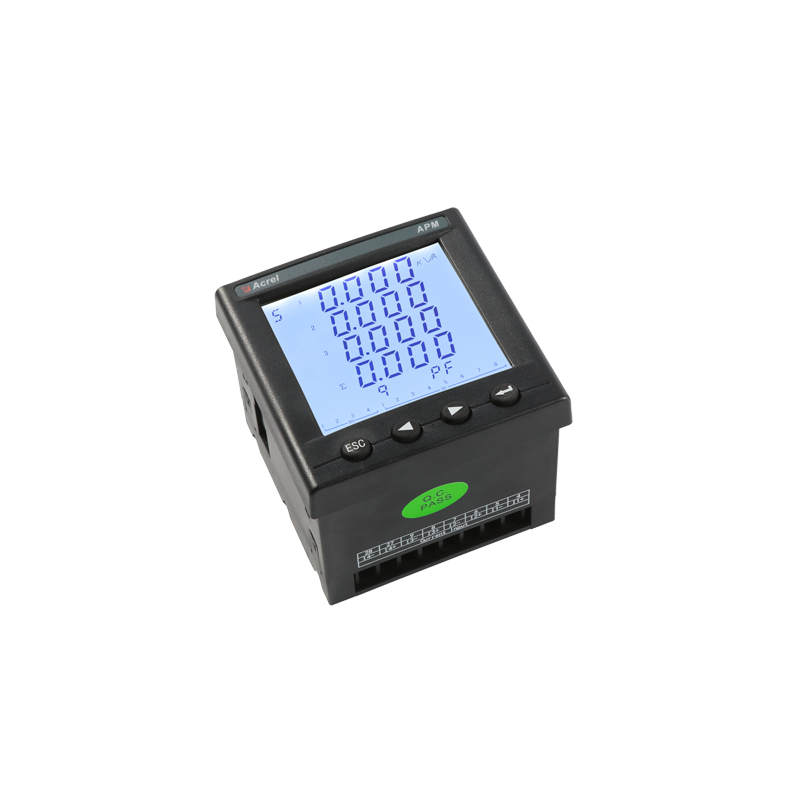

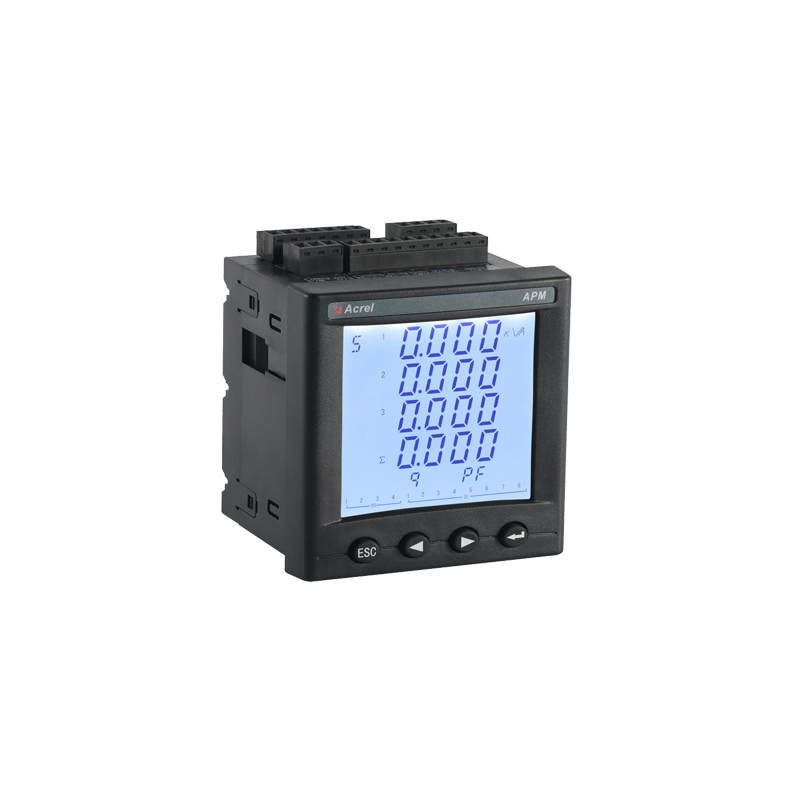

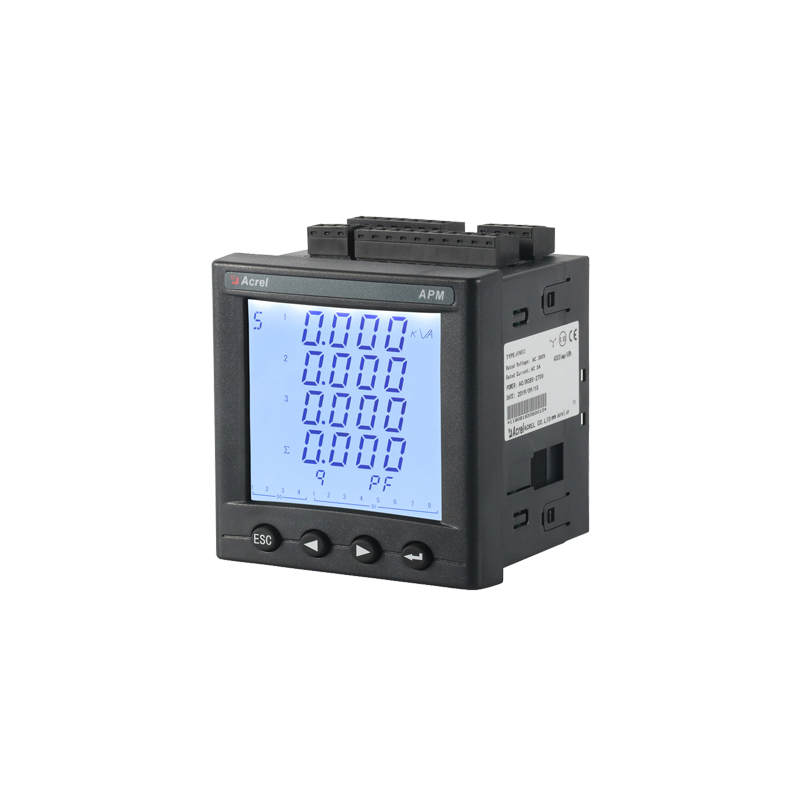

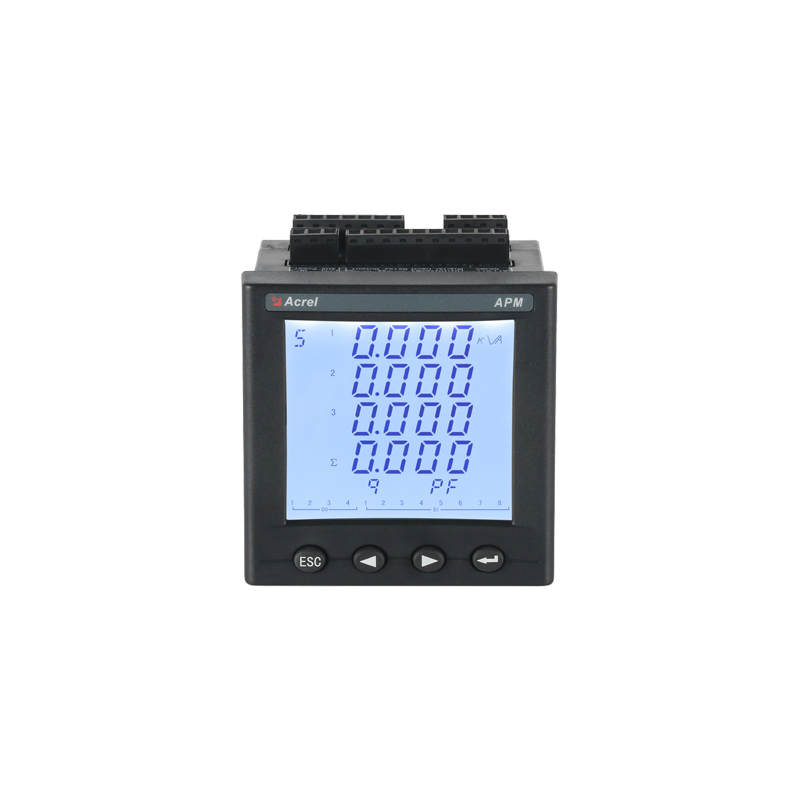

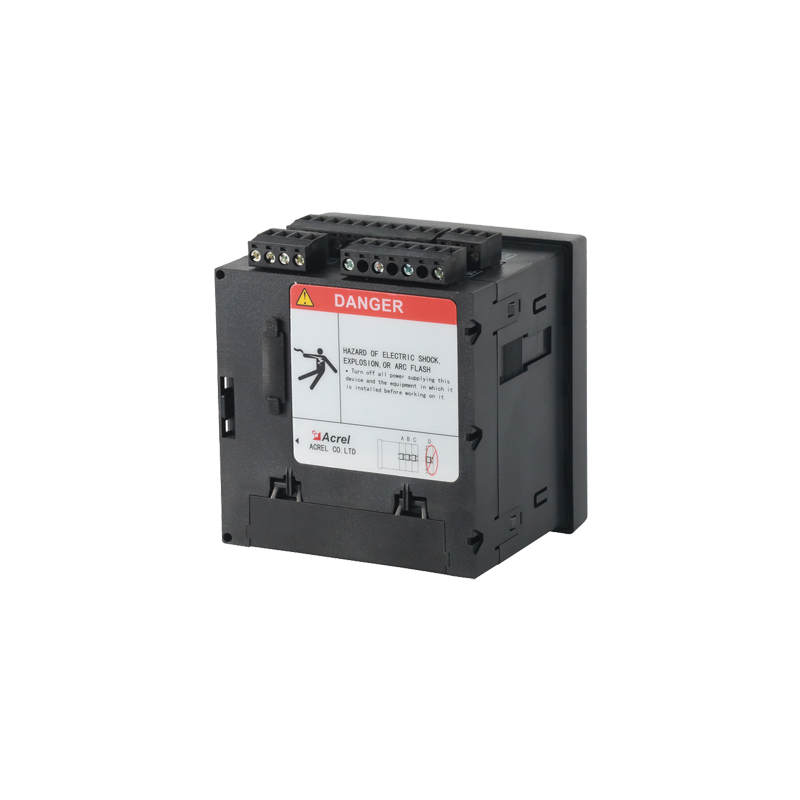

APM800 Series

Name: APM800 Series
Brand: Acrel Co., Ltd.

APM series power meters of ACREL are ac digital multifunction meters that are designed according to IEC standards and synchronized with international advanced technology. APM series three phase energy meters have full power measurement, energy statistics, analysis of power quality and network communications and other functions, and 3 phase digital energy meters are mainly used for comprehensive monitoring of the quality of power supply network.

This series of 3 phase energy meter use a modular design, with a rich function of the external DI / DO module, AI / AO module, event recording (SOE) module with T-Flash (TF) card, network communication module, temperature and humidity measurement module, can achieve full power measurement of electrical circuit and monitoring of switch status, dual RS485 with Ethernet interface can realize data copying of RS485 master station, eliminating the need for data switching exchange. PROFIBUS-DP interface can realize high-speed data transmission and networking function. Acrel can provide multifunction meter with rs485 in good price.



 PDF Download  Get A Quote

Technical parameter of APM800 Series

How to Wire an APM800 Series

APM 800 Series Applications

Rated Voltage		400Vac, 690Vac
Rated Voltage		AC 1A, 5A(CT input)
Frequency		45～65Hz
Accuracy(active power)		Class 0.2s(APM801, APM830) Class 0.5s(APM800, APM810)
Installation		Panel mounted
Basic function		four-quadrant electric energy
		real-time and maximum demand
		2DI+2DO
		RS485/Modbus
Additional function		/F: muti tariff
		/MD82: 8DI+2DO
		/MLOG: SD card (capacity 8G)
		/MD84: 8AI+4AO
		/MCE: Ethernet
		/MCP: Profibus-DP
		MTN: 4 channels 2m NTC temperature measurement
		MTP: 2 channels PT100 temperature measurement
		MTH/: 1 way temperature and humidity control
		/MCM: the second RS485
Communication		RS485 port/Modbus-RTU protocol and DLT645 protocol
Communication		RJ45 port (Ethernet)/Modbus-TCP http DHCP protocol
Auxiliary power supply		AC/DC 85~265V or AC/DC 115~415V

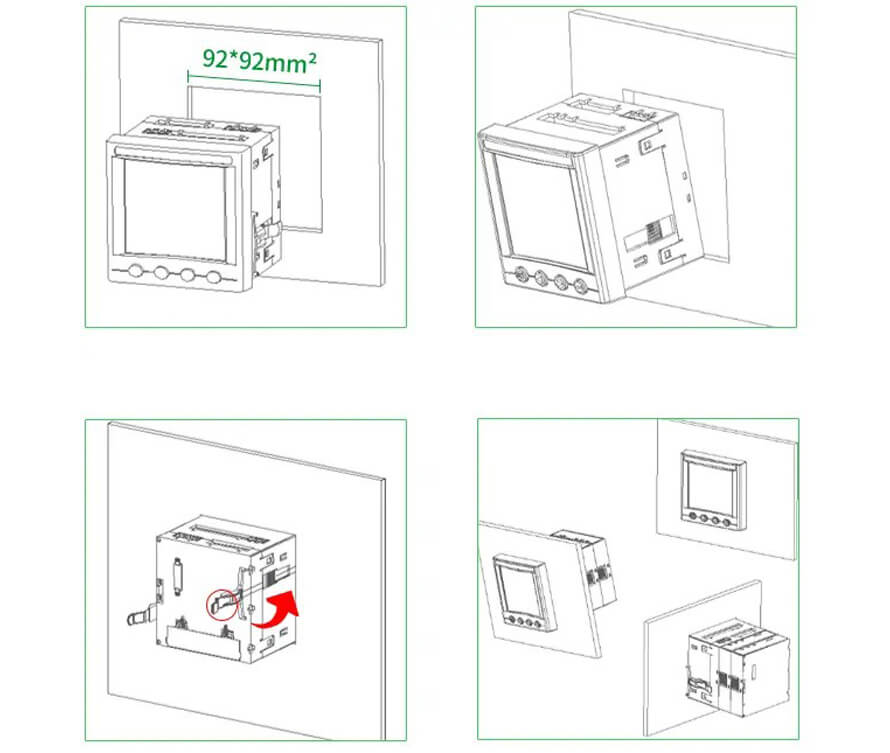

How to Wire an APM800 Series

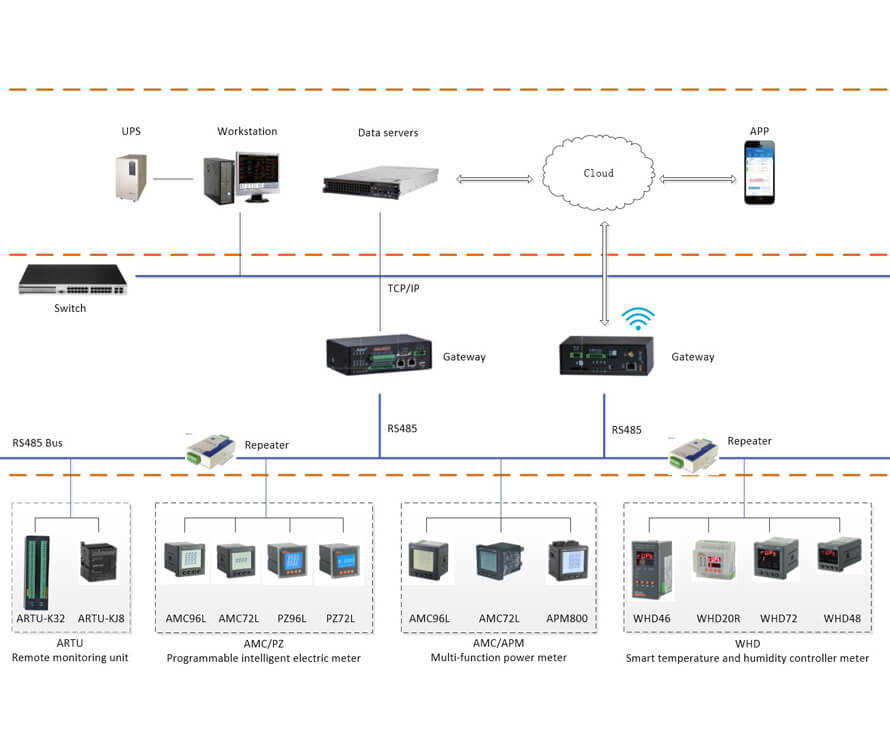

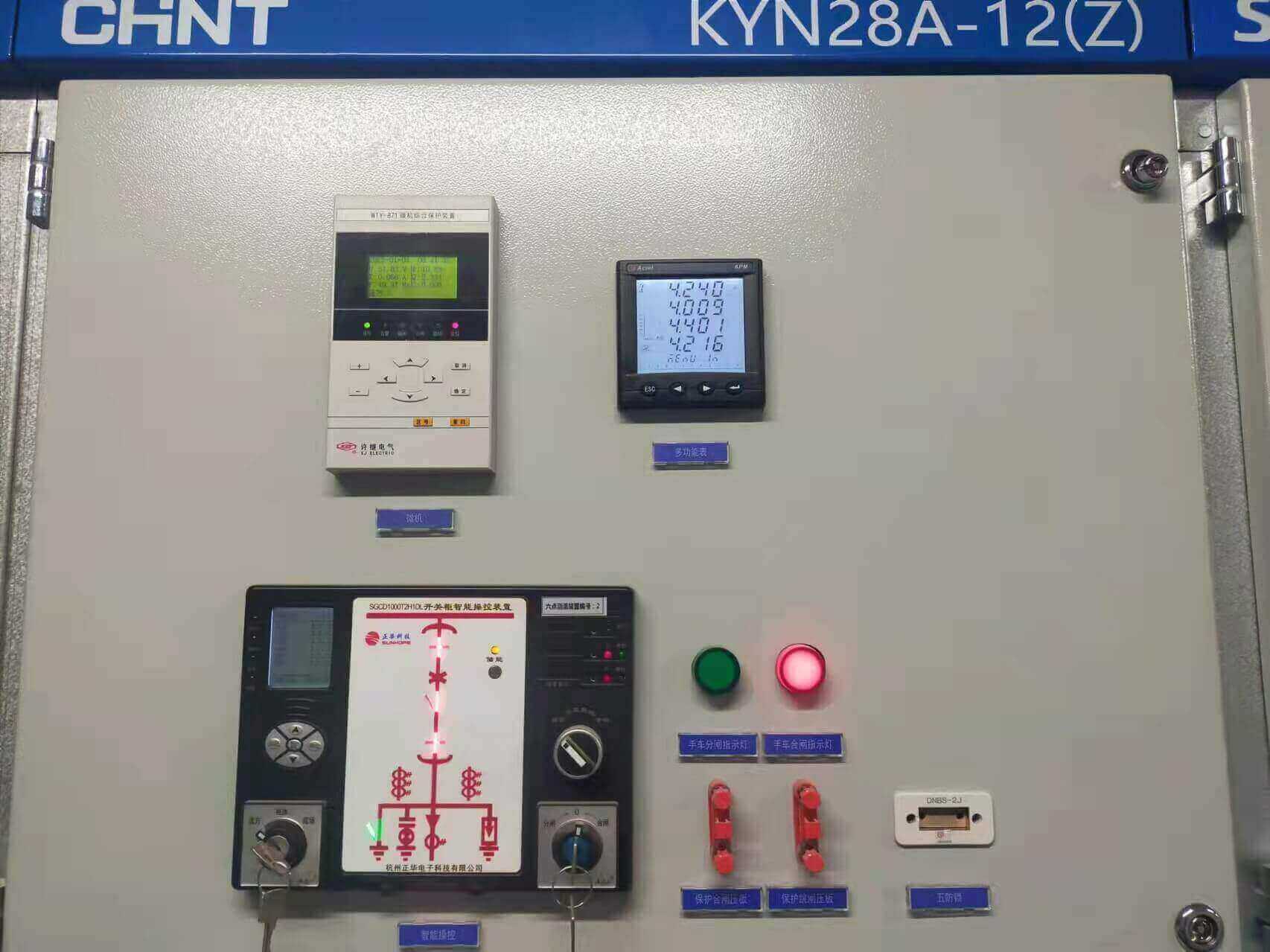

APM 800 Series Applications
