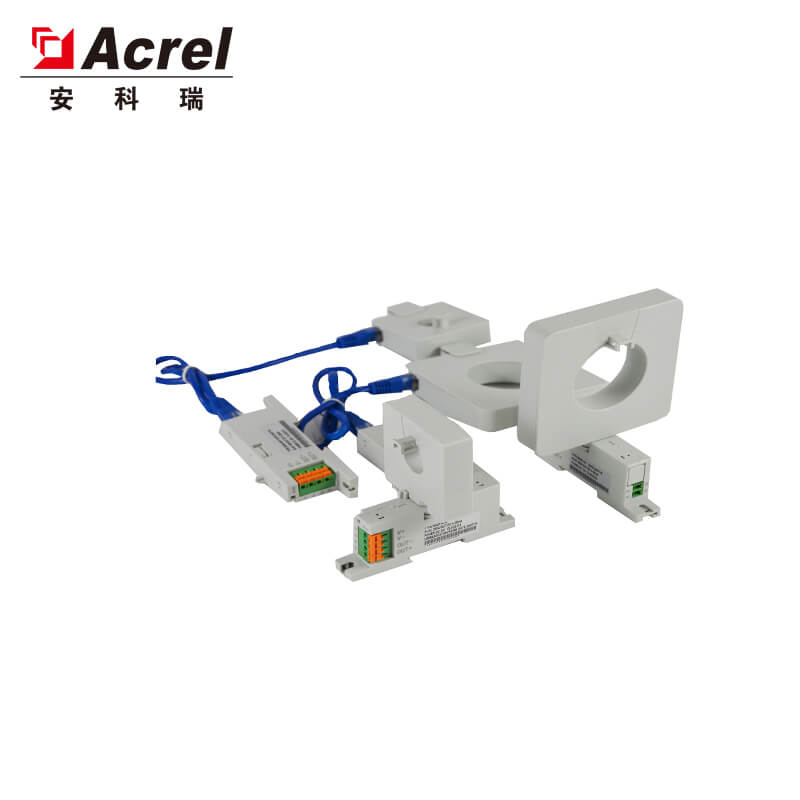

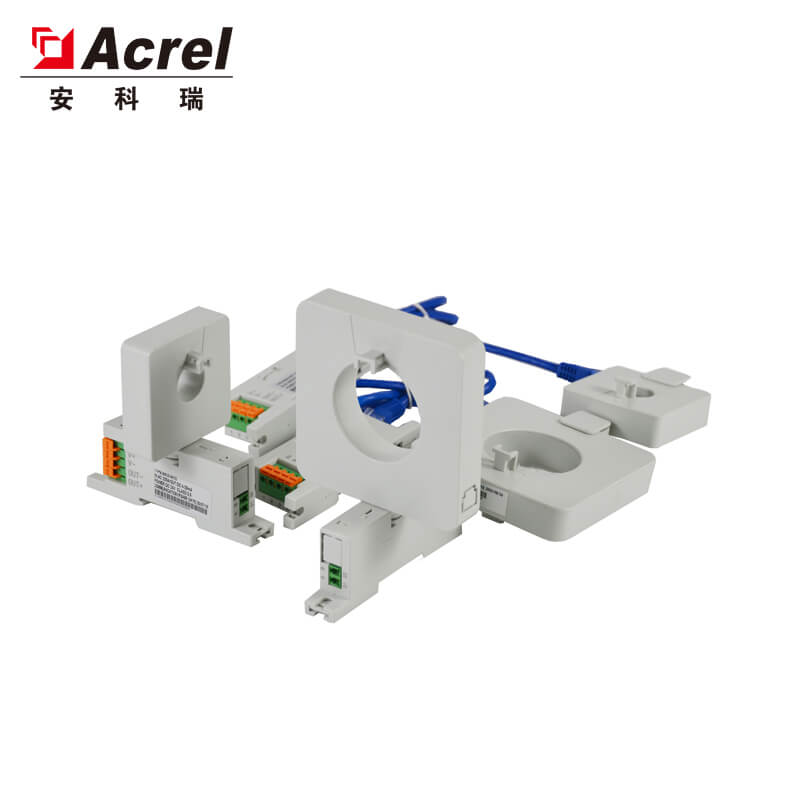

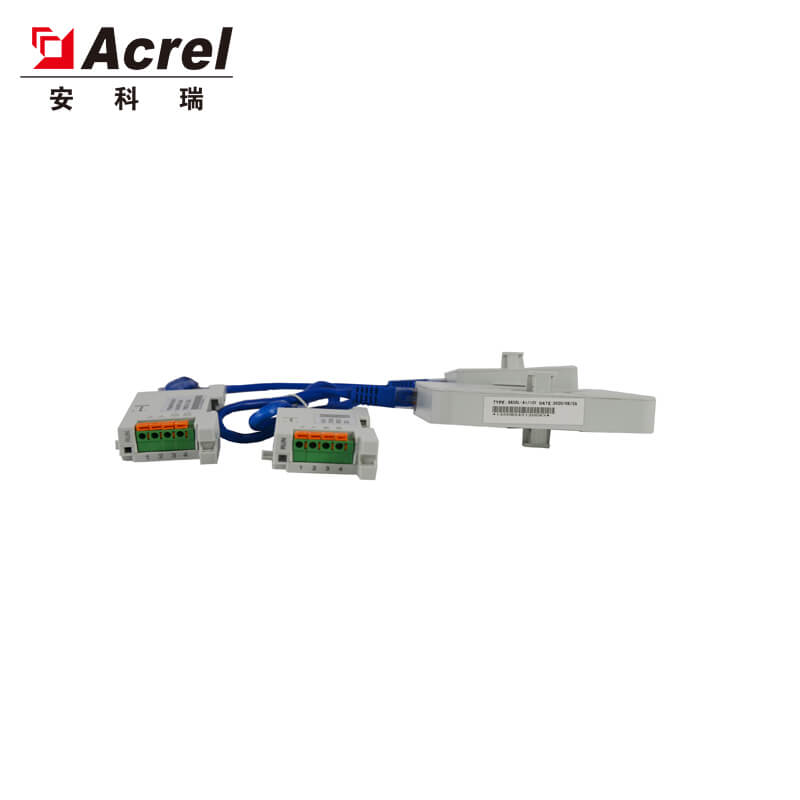

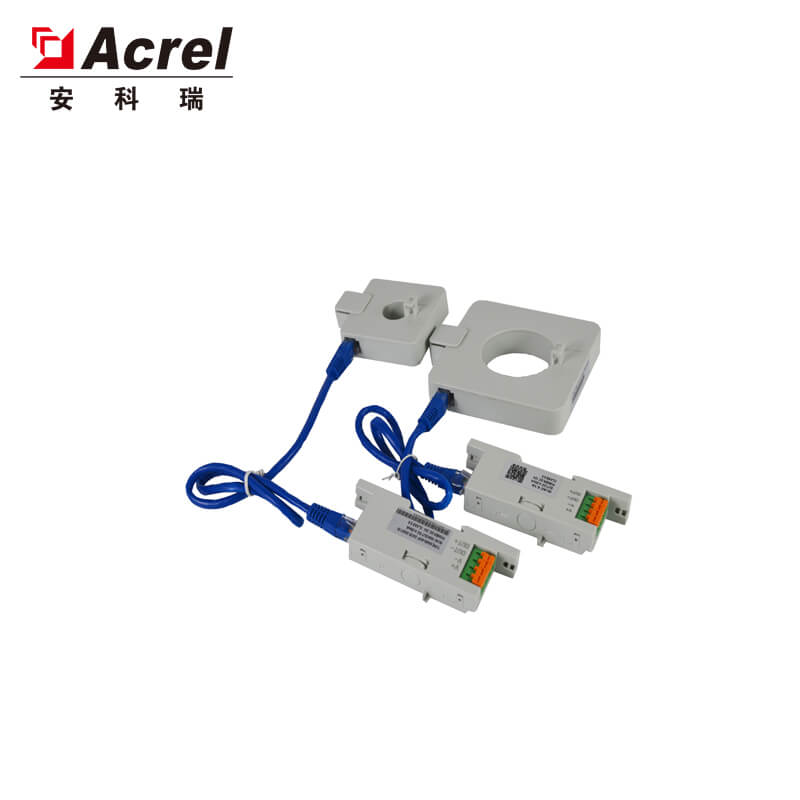

BA Series Current Transducer

Name: BA Series Current Transducer
Brand: Acrel Co., Ltd.

Current transformer AC 0~600A analog output 4-20mA 0-5V.



 PDF Download  Get A Quote

Technical Parameters of BA Series Single Phase AC Current Transducer

How to Wire a BA Series Single Phase AC Current Transducer

Technical parameter			Index
Accuracy class			Class 0.5
Input	Nominal value	BA20(II)-AI	Current AC 0.5A, 50A, 200A, etc. AC 0～(0.5～200)A
		BA50(II)-AI	Current AC 60A, 300A, 600A, etc. AC 0～(60～600)A
		BA50L(II)-AI	Current AC 0.1A, 1A, etc. AC 0～(0.1～1)A
	Frequency response		25Hz～800Hz, especially suitable for industrial frequency occasions
Output	Nominal value		DC4～20mA, or 0～20mA, 0～5V, 0～10V etc.
	Communication		RS485 interface/Modbus-RTU
Power supply	DC 12V or 24V
Installation method			TS35 rail, or use screws to fix the cabinet

Type	Function
BA20(II)-AI/I	Input:0-(0.5-200)A;
	Output:4-20mA/0-20mA;
	Diameter ∮20
	Powered: DC 24V/12V
BA20(II)-AI/V	Input:0-(0.5-200)A;
	Output:1-5V/0-5V;
	Diameter ∮20
	Powered: DC 24V/12V
BA50(II)-AI/I	Input:0-(60-600)A;
	Output:4-20mA/0-20mA;
	Diameter ∮50
	Powered: DC 24V/12V
BA50(II)-AI/V	Input:0-(60-600)A;
	Output:1-5V/0-5V;
	Diameter ∮50
	Powered: DC 24V/12V
BA50L(II)-AI/I	Input:0-(0.1-1)A;
	Output:4-20mA/0-20mA;
	Diameter ∮50
	Powered: DC 24V/12V
BA50L(II)-AI/I	Input:0-(0.1-1)A;
	Output:1-5V/0-5V;
	Diameter ∮50
	Powered: DC 24V/12V

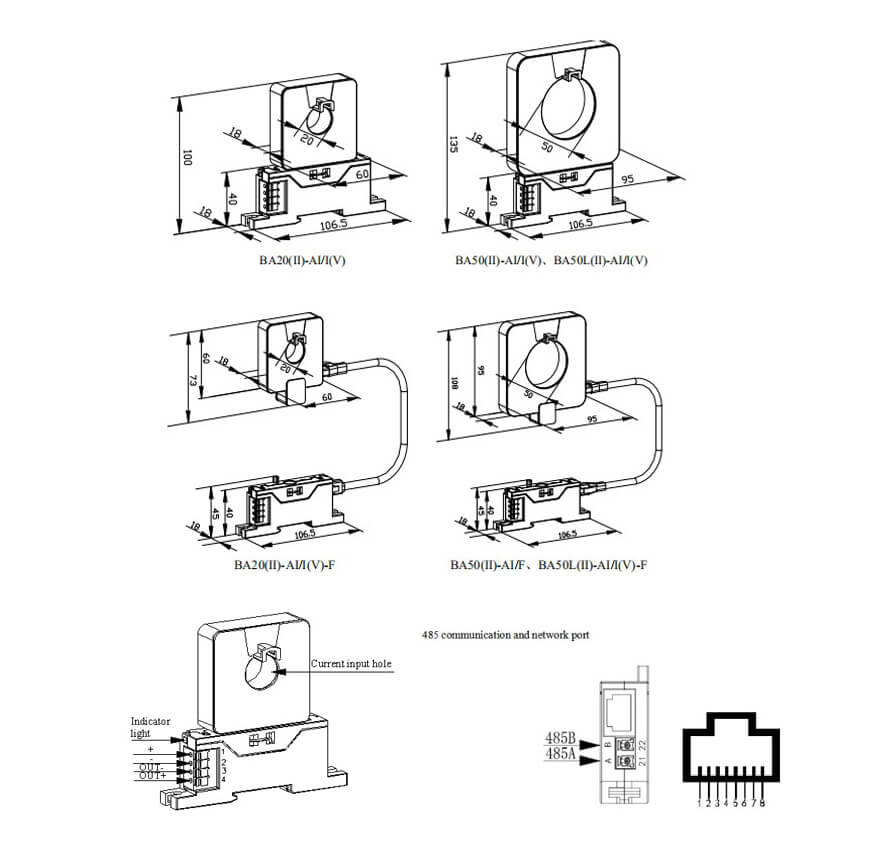

How to Wire a BA Series Single Phase AC Current Transducer

Certificate
